100' Sand Transportation Work Boat with 60T Max Capacity 2m Maximum Loaded Draft

Place of Origin : Shandong china

Price : $10,000/sets >=1 sets

Brand Name : Keda

Certification : CE 9001

MOQ : 1

DWT : < 1000t

Length (feet) : < 100'

Year Built : new

empyt draft : 60cm

maximum loaded draft : 2m

Max capacity : 60T

Total weight : 40t

Name : transport carrier boat

Type : boat

Usage : Transport Sand

Main Engine : weichai

Color : Customized

Contact Now

Product Description
Keda Service Boat -Tug Boat

The design of multifunction support vessel is assorted to modern advanced dredgers or other boats. It can complete the auxiliary work of the dredging site. It makes the advantages efficient, convenient, economical of the advanced dredgers reflect more adequately and effectively.

100' Sand Transportation Work Boat with 60T Max Capacity 2m Maximum Loaded Draft
Product parameters
NoDescriptionSpecification
1TypeDismantle type, can be transport by containers
2Main Specifications
Length Overall11.8 m
Width Overall4.75
Middle Pontoon Length11.8 m
Middle Pontoon Width2.25m
Middle Pontoon Height1.5m
Side Pontoon Length11.8 m
Side Pontoon Width1.25 m
Side Pontoon Height1.5m
Unload/Full Load Draft0.8m/ 1.1m
Main EngineWeichai 205kw (280HP)
Generator15kw
Gear boxFD300
Fuel Tank Capacity (For itself)500 liters
Weight approx.25 tons
Fuel Carrying Capacity Approx.15000 liters
3Deck Layout
Hydraulic Deck CraneCapacity:4tons
Towing chock1 piece
Fairlead1 set
Bollard4 pair
Hydraulic Winch40Kn, 1 set
Operation room1 piece( with Operating Desk, Chair
Navigation Lights1 set
Spot Lights2 piece
Rest room1set (for 2 person)
Bathroom1set
Kitchen room1set
4Rudder System
Steering Gear1 set
Stream-line rudder1 piece
Propeller1 piece
5Life Saving Apparatus & Fire Fighting Apparatus
Life Jackets4 pieces
Life Buoy4 pieces
Fire Extinguisher2 pieces
6CCSB Steel Plate
Side Plate6 mm
Main Deck6 mm
Fore Deck8 mm
Bottom Plate8 mm
7Loading capacity2 x 40ft container

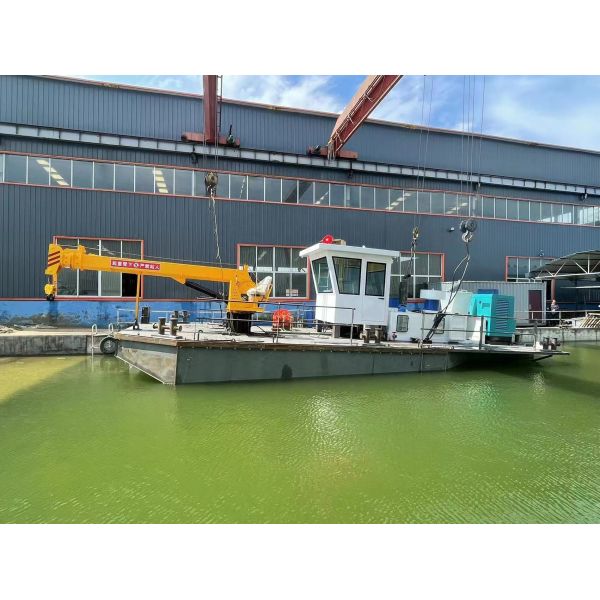

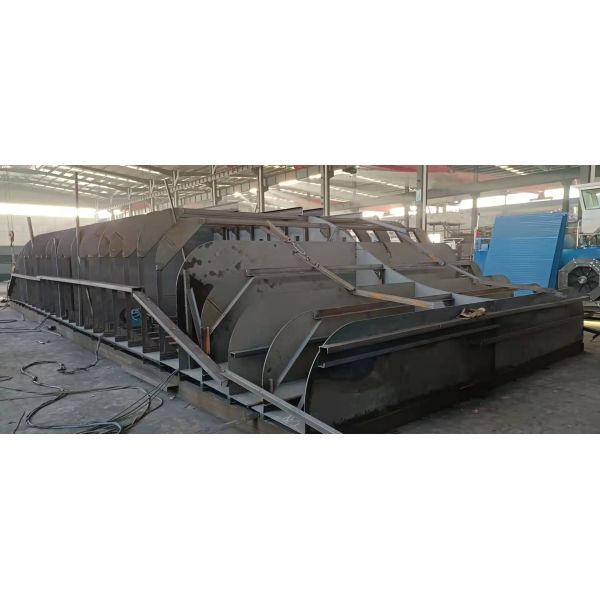

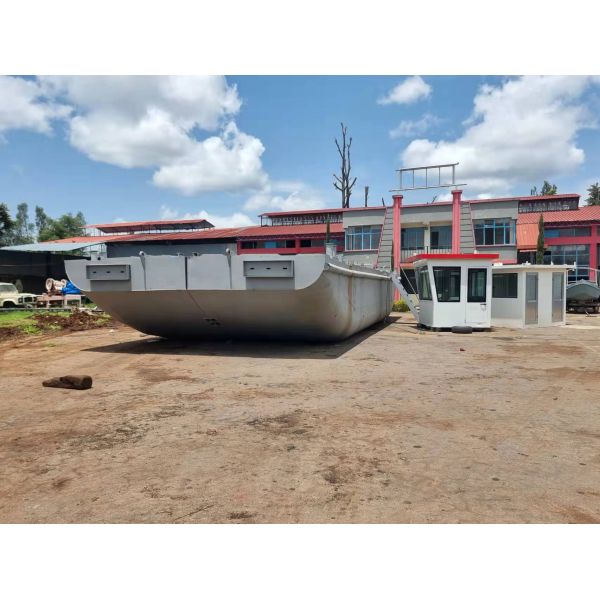

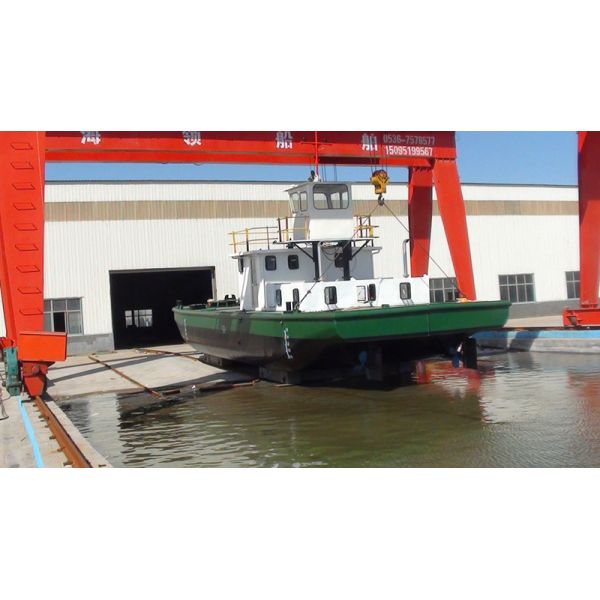

Details Images
100' Sand Transportation Work Boat with 60T Max Capacity 2m Maximum Loaded Draft
100' Sand Transportation Work Boat with 60T Max Capacity 2m Maximum Loaded Draft
100' Sand Transportation Work Boat with 60T Max Capacity 2m Maximum Loaded Draft
100' Sand Transportation Work Boat with 60T Max Capacity 2m Maximum Loaded Draft
100' Sand Transportation Work Boat with 60T Max Capacity 2m Maximum Loaded Draft
100' Sand Transportation Work Boat with 60T Max Capacity 2m Maximum Loaded Draft
Applications
  • Pushing and pulling of dredgers and other dredging devices.
  • Pushing, pulling, loading and unloading of the transporting ships.
  • Mounting and dismounting of the mud transporting floating pipes.
  • Transporting fuel oil and drinking water for the dredging site.
  • Repair of cutter, bucket wheel, mud pipes and other steel parts.
  • Anchoring, weighing anchor, removing anchor works of the dredgers.
  • Loading and transporting of heavy things.
  • The transportation of the sailors and other logistics service.
Company Profile
100' Sand Transportation Work Boat with 60T Max Capacity 2m Maximum Loaded Draft

Qingzhou Keda Environment Dredging Equipment Co.,Ltd. is located in Qing­zhou city, Shandong province, China with 22000m2 area and more than 100 staff, very convenient to Qingdao sea Port, Weifang airport and Qingdao In­ternational Airport. To be honest and adhering client-first is our service concept. To make first-class quality and service is our brand goal. To take clients as the center, strive for survival by quality and seek development by innovation is our enter­prise tenet. We provide high quality products and faultless service. Our company has taken the lead of passing IS09001 :2008 International Quality System Certification & the General Ship Production Enterprise Technical Condi­tion Evaluation Certificate issued by ZC, to provide our customers with dredger products of high standard & quality. Products had been exported to more than 1 o countries such as Phlipplines, Russia, Indonesia, North Korea, Surinam, Congo, Mali, Fiji, Bangladesh,Argentina,Columbia etc.

100' Sand Transportation Work Boat with 60T Max Capacity 2m Maximum Loaded Draft
Our Cases
100' Sand Transportation Work Boat with 60T Max Capacity 2m Maximum Loaded Draft
